Stealth aircraft aren’t “invisible”—they’re engineered to be extremely hard to detect across radar, infrared, acoustic, and visual spectrums. The engineering behind them is a fusion of physics, materials science, aerodynamics, and electronic warfare.
Stealth aircraft allow militaries to penetrate advanced air defences, conduct surprise strikes, perform reconnaissance without detection and maintain air superiority in modern warfare.

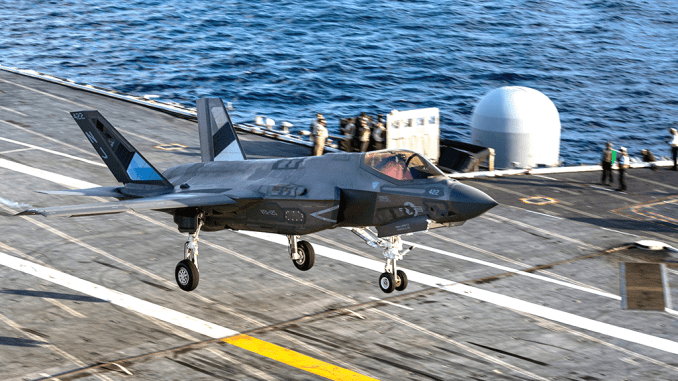

The electromagnetic signature of the F-35 Lightning II is defined by its “all-aspect” stealth, designed to minimize detection across multiple spectrums, including Radar Cross-Section (RCS), infrared (IR), and radio frequency (RF) emissions.
Radar Cross-Section (RCS): The F-35 is engineered to have an extremely low radar signature, often compared to the size of a golf ball (approximately) from the front.
Geometric Shaping: Aligned edges, serrated doors, and a “clean” exterior with internal weapons bays disrupt and scatter radar waves rather than reflecting them back to the source.
Radar Absorbent Materials (RAM): Specialised grey surface coatings absorb and dissipate incoming radar energy.
Internal Carriage: Carrying weapons and fuel internally prevents these items from creating large radar reflections.
Distributed Aperture System (DAS): While this is a sensor system rather than a reduction method, the F-35’s DAS uses multiple infrared cameras to provide 360-degree situational awareness, allowing it to detect the thermal signatures of other aircraft without exposing itself to radar.
Fuel as a Heat Sink: The F-35 uses its onboard fuel as a heat sink, transferring heat generated by the powerful electronics and engines into the fuel, rather than letting it radiate into the atmosphere where it could be detected.
Reduced Skin Temperature: To combat the heat generated by friction at high speeds (which creates a signature in the long-wave infrared/LWIR band), the F-35’s airframe is designed to minimize these signatures, sometimes using specialized, heat-resistant coatings.
Internal Component Placement: Sensitive, high-heat components are shielded or placed internally to prevent them from being detected by enemy infrared search and track (IRST) systems.
Infrared (IR) Signature: To evade heat-seeking sensors, the F-35 incorporates features to mask its thermal footprint.
Engine Shielding: The engine exhaust is shielded and cooled to reduce heat emissions. The F-35 uses a Pratt & Whitney F135 engine, which generates significant heat but uses an, at times, exposed, 2D-vectoring nozzle designed to reduce the infrared signature. The nozzle is shaped to blend the exhaust plume, making it harder for heat-seeking missiles to lock on.
Passive Sensing: Systems such as the Distributed Aperture System (DAS) and the Electro-Optical Targeting System (EOTS) allow the pilot to track targets in infrared without emitting signals that would reveal their position.
Electronic Warfare & RF Management: The F-35 manages its own electromagnetic emissions to remain hidden while simultaneously disrupting enemy systems.
Low Probability of Intercept (LPI): The AN/APG-81 AESA radar uses agile, directional beams that are difficult for enemy sensors to distinguish from background noise. The AN/APG-81 is an Active Electronically Scanned Array (AESA) fire control radar developed by Northrop Grumman for the F-35 Lightning II. It is a key sensor for the aircraft’s air-to-air, air-to-ground, and electronic warfare operations.
The radar is designed for low-probability-of-intercept (LPI), allowing it to detect threats without being easily detected itself. It includes active and passive air-to-air and air-to-ground modes.
Active Cancellation: While the AN/APG-81 is highly effective in electronic warfare, the term “active cancellation” usually refers to a technique for reducing a target’s radar cross-section (RCS) by emitting a signal in opposite phase to an incoming radar wave. The APG-81’s primary function is as a sophisticated sensor for detection and tracking, not just as a jamming system.
Active Jamming: Its advanced electronic warfare (EW) suite (such as the ASQ-239) can detect, locate, and jam enemy radar frequencies, effectively “blinding” adversaries while the F-35 remains stealthy. Active electromagnetic cancellation that emits signals to confuse radar returns.
Stealthy Data Links: The Multifunction Advanced Data Link (MADL) enables F-35s to share high-bandwidth data with one another using narrow, directional signals that are highly resistant to interception.
Radar deflection: By design, the F-35 defeats X-band (fire‑control radars), Ku/K/Ka-band (missile seekers), and C/S/L-band (surveillance radars) wavelengths. These bands have wavelengths from a few centimetres to a few millimetres.
Stealth aircraft (F-22, F-35, B-2) are optimised to reduce radar cross‑section (RCS), primarily defeating higher‑frequency bands:
The F-35 Lightning II is designed with advanced, multi-spectral stealth capabilities to minimize its infrared (IR) thermal signature, in addition to its low radar cross-section. While it cannot be truly invisible to advanced IR sensors, its thermal management relies on reducing exhaust heat, hiding components, and managing surface heat from friction.
